Mastering Irrigation and Nutrient Systems with Reiziger

Maximize Your Hydroponic Garden’s Yield.

Growing plants in a hydroponic system or soilless culture means that the volume of water and nutrients available to plants naturally is limited. However, with the right irrigation system and nutrient supply, your hydroponic plants will thrive and yield incredible results with abundant and healthy fruits, vegetables, herbs, and flowers.

Let’s dig a little deeper into how to get your irrigation system working for you and your plants.

Irrigation system

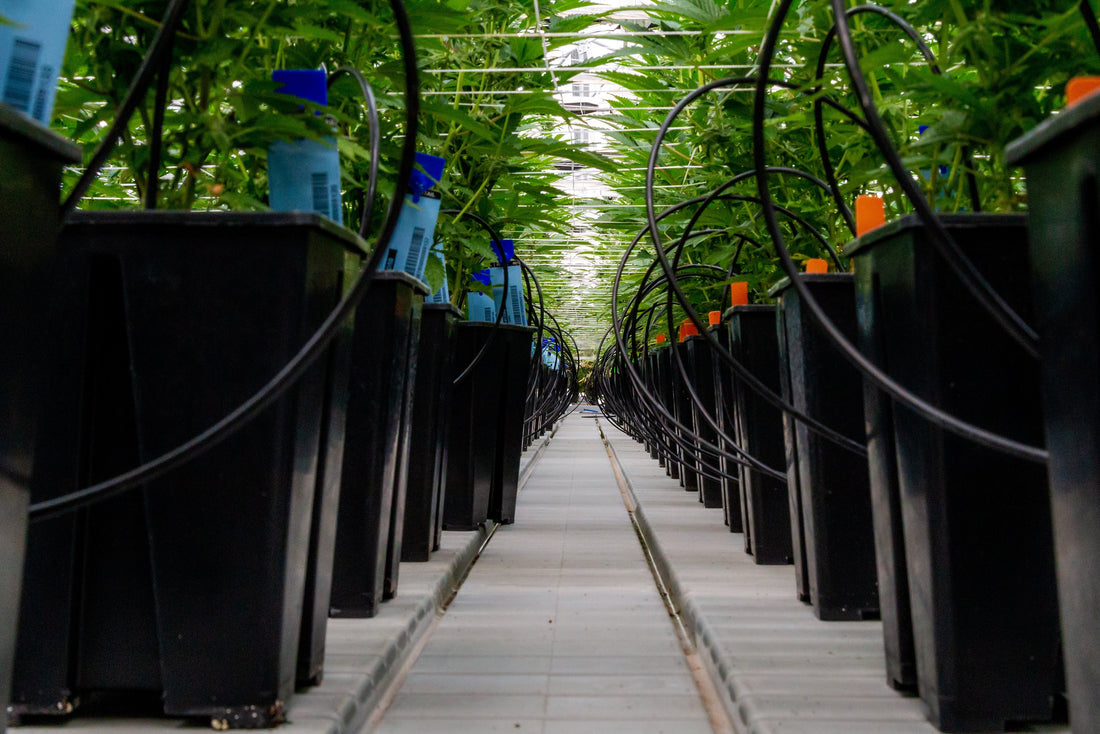

When you are growing plants hydroponically, irrigation is needed to refill the water that is absorbed by the substrate you are using. The best way to supply plants with water is through drip irrigation.

There is a wide variety of drip irrigation systems available, varying from cheap capillaries, to the more advanced labyrinth emitters. The most suitable system for your garden depends on the water quality and the available technical infrastructure.

Capillaries are cheap and can be used with low pressure, but they are prone to clogging, so it’s important to use pure water and control EC and pH levels. Pure water is water from a source that doesn’t contain any impurities; distilled water is its most common form.

More expensive drip irrigation emitters require higher pressure, but they are less prone to clogging.

There are a number of variables that will determine the amount of water your hydroponic garden needs, these include: the size of the plants, their exposure to sunlight, the substrate used, and the irrigation system itself. Even when using a new drip irrigation system, the supply of individual nozzles will vary. To avoid variances in plant development because of the differences in water availability, the irrigation set up should ensure that the biggest plants get sufficient water. This can mean that smaller plants will receive too much water. This is why substrates must have adequate drainage capacities and be adequately drained from the pots or containers.

For small pots and containers, one dripper should be sufficient, and for large pots, two or more drippers may be needed. It’s preferable to grow plants together in larger units with several plants and drip nozzles. You can achieve this by growing in troughs or grow bags.

Nutrients

All plant species need twelve nutrients for growth and development. There are six macro elements: nitrogen (N), potassium (K), phosphorus (P), calcium (Ca), magnesium (Mg), sulphur (S) and six micro elements: iron (Fe), manganese (Mn), zinc (Zn), boron (B), copper (Cu) and molybdenum (Mo).

Plants take up these nutrients or elements in the ionic form. These can be supplied in the form of fertiliser salts which dissolve in water.

The total volume of water and nutrients in a soilless system is too limited to contain all the nutrients for a long period.The buffering capacity differs between substrates. Organic substrates require a base dressing with fertilisers, as the organic matter has an ‘exchange capacity’ for ions and needs to be loaded. Therefore peat or coco coir substrate can cover the plant demand for several weeks (macro elements) or even a whole cropping cycle (some micro elements).

Inert substrates like stone wool or perlite will contain only sufficient nutrients for a couple of days, so these need to be supplied with sufficient nutrients. The most appropriate way, is to supply the fertilisers with the irrigation water. This method is called ‘fertigation’ and the mixture of irrigation water and nutrients is called ‘nutrient solution’.

For practical reasons the easiest way to prepare nutrient solutions is to use concentrated liquid compound fertilisers. These have a predefined composition of micro and macro-nutrients suitable for many crops. Since Ca and SO4 cannot be mixed together in concentrated form, these compounds are offered in separate A and B solutions, which need to be diluted in equal ratios in the irrigation water to compose a nutrient solution.

There are several ways to arrive at the nutrient solution to be irrigated, either by using automatic devices like proportional dosing pumps, venturi systems, and diluters, or manually preparing buffer tanks with the required concentration.

Create the healthiest garden with the right irrigation and nutrient system. Reiziger formulas are comprised of the purest, most nutritive ingredients to enhance the growth of your plants for maximum yield. For more information about our products, contact us on 1800 Reiziger.
